intuitiv'3D Professional

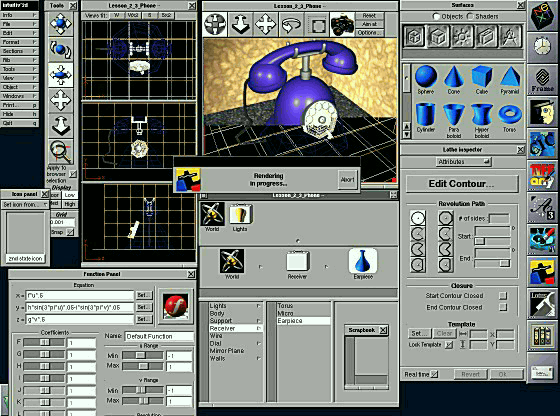

Screen
Grab
A Professional 3D Modelling Application
intuitiv'3d is a complete modeling and rendering environment
in three dimensions for all designers, architects, illustrators,
and hobbyistsÐwith a fast, easy-to-use interface. Developed
under NEXTSTEP, intuitiv'3d applies the object-oriented paradigm
to 3D modeling in a way never done before. This results in a very
intuitive approach of all 3D functionalities.
intuitiv'3d provides innovative features such as the
manipulation of all objects by drag&drop (shapes, groups,
lights, shaders, display settings, shaders, light sets, functions
or rendering settings) , storing of all objects in the Scrapbook,
visual libraries of shapes and materials, or management of the
world with a NEXTSTEP like browser. intuitiv'3d provides the
unique concept of Metashaders, which permits users to easily
create their very own shaders.
intuitiv'3d includes an Application Programming Interface
which is available free-of-charge to all developers who wish to
develop their own module over the intuitiv'3d Engine, or/and
adapt intuitiv'3d to specific professional requirements.
intuitiv'3d is conceived as a modular environment: users can
acquire the specific modules that feed their needs, and
progressively extend their 3D world with additional modules
(ZZVolume Link soon available, Motion module is scheduled last
quarter 1994). <5h>Features:<5h>
- Concepts/Interface. Libraries/Inspectors for 3D
primitives, lights, shaders and custom 3D shapes to
drag-and-drop into the views; Save and recall object
parameters in libraries; Multiple simultaneous 3D worlds;
3DScrapbook to store objects, camera viewpoints, display
options, rendering options.
- Modeling. 3D ClipArt libraries; Drag-and-drop of RIB
files with object decomposition; Constructive Solid
Geometry (CSG): grouping / ungrouping of 3D shapes into
sets, volume sets, unions, differences and intersections
- Navigation. WorldBrowser to move through a world
hierarchy, name and have direct access to 3D shapes and
groups. Its structure, design and use is similar to the
browser of NeXT WindowManager; 3 complementary modes to
move/rotate/scale 3D shapes and groups: direct mouse
manipulation, keyboard, inspectors; Working plane can be
fully customized; 3D grid to constrain
motion/rotation/scaling; Align/center tools.
- Camera. Real-time Quick Renderman view; Display options
(Bounding Box, point cloud, wire frame, faceted, smooth)
with variable tessellation; 3 orthographic displays on
which the user intervenes to drag objects/shaders from
the libraries and create the design using the tools;
Perspective display; Drag-and-drop of viewpoints and
display options; Put on object, center functions
- Lights. Types of lights: ambient, distant, spot, point;
Generic lights for special light shaders (slide
projector, window light...); 3D representations of lights
for easy positioning; Automated shadows; Shadow maps
parameters for expert users.
- Shaders. Supported shaders: surface, light, displacement,
volume; Drag-and-drop and ShaderWell interface; Shader
Panel permits the user to fully access and tune any
shader parameter; Easy generation of maps from TIFF or
EPS for use with texture, bump, emboss
- Ergonomic tools to translate/rotate/scale a texture map
among a shape; Automated generation of environment maps
for use with any shader requiring reflective information:
glass, shiny, shiny metal; Full compliance with
PixarLooks and Valis Group Shaders; Automatic icon
generation for visual retrieval in libraries
- Rendering. Smooth Quick Renderman view to monitor
color/lights/shaders effects; Snapshot rendering to test
Photorealistic Renderman rendering in real-time on part
or totality of the scene; Rendering speed can be
controlled through the quality level; Drag-and-drop of
rendering options; Multi-host rendering over a network;
Save rendered images as 32-bit color TIFF files
- intuitiv'3d Modeler. Extended 2d drawing tools with
editable bezier curves to create any complex 2D shape;
Creation of volumes from 2D shapes with extended
extrusion, lofting, lathing and sweeping tools.
- Extensions. Fully extensible via an API: documentation,
include files, and source code are available to
programmers.
Requires NEXTSTEP Release 3.2 or higher.
Now shipping in Multi-Architecture Binary (MAB) format.
